Overview

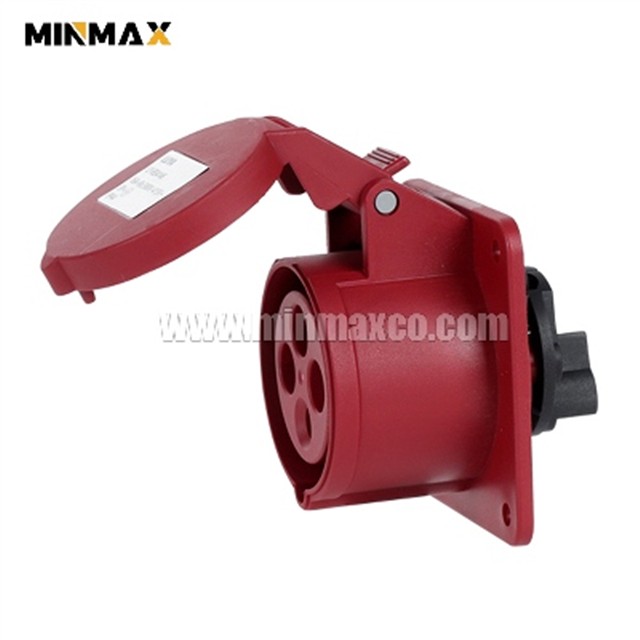

An industrial socket allows plugs from various applications to fit in, enabling them to receive the appropriate amount of energy. Nowadays, a wide range of socket types are available, tailored to different applications and needs.
Socket Features
✔Complies with GB11918-11919-2001 (equivalent to IEC60309-1/2) standards
✔Shell color indicates rated voltage, and dimensions are designed based on current and voltage to prevent mis-insertion
✔Grounding sleeve is longer, elastic band ensures good contact, and features a lock-off device
✔Grounding socket is longer than phase sockets, with an elastic band ensuring good contact and a lock-off device
✔Engineering plastic housing is drop-resistant and impact-resistant, easy to plug in and out
Product Famaily Details
| Part number | OEM Part Number | Voltage | Color | Male/Female Grounding Contact Position |
| MM-GS4146 | 1390 | 380-415V | Red | 6H |
| MM-GS4149 | 1389 | 200-250V | Blue | 9H |
| MM-GS4144 | 1388 | 100-130V | Yellow | 4H |
| MM-GS4147 | 1391 | 480-500V | Black | 7H |
| MM-GS4142 | 1393 | >50V,301-500Hz | Green | 2H |
| MM-GS4143 | / | 380V,50Hz或440V，60Hz | Red | 3H |
| MM-GS4145 | / | 600-690V | Black | 5H |
| MM-GS41410 | 1392 | >50V,100-300Hz | Green | 10H |
| MM-GS41411 | / | 400-460V,60Hz | Red | 11H |
