Overview
Industrial connectors are electrical connection solutions designed for the industrial field. They can reliably connect equipment to power sources, and are widely used in scenarios such as logistics and industrial manufacturing, ensuring stable transmission of electricity and signals.
Connector Features
✔Modular design: Customizable as needed, flexibly combining different functional modules to meet diverse requirements.
✔Diverse specifications: Cover a variety of current and voltage levels to adapt to the power consumption requirements of different devices; multiple pole numbers to meet complex electrical connections.
✔High - quality materials: The shell is made of high - strength, corrosion - resistant engineering plastics, and the internal conductors are made of high - quality metal materials to ensure service life and electrical conductivity.
Product Famaily Details
| Part number | OEM Part Number | Voltage | Color | Male/Female Grounding Contact Position |

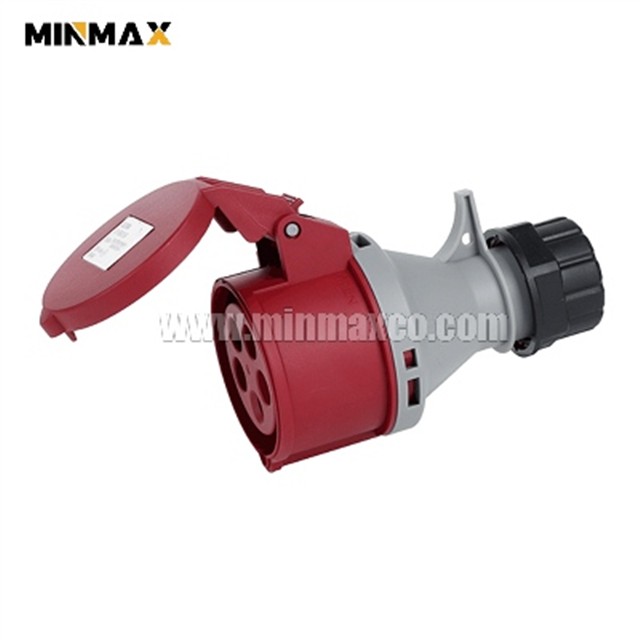

| ＭＭ-BS4246 | 526 | 380-415V | Red | 6H |
| ＭＭ-BS4249 | 525 | 200-250V | Blue | 9H |
| ＭＭ-BS4244 | 524 | 100-130V | Yellow | 4H |
| ＭＭ-BS4247 | 527 | 480-500V | Black | 7H |
| ＭＭ-BS4242 | 529 | >50V,301-500Hz | Green | 2H |
| ＭＭ-BS4243 | / | 380V,50Hz或440V，60Hz | Red | 3H |
| ＭＭ-BS4245 | / | 600-690V | Black | 5H |
| ＭＭ-BS42410 | 528 | >50V,100-300Hz | Green | 10H |
| ＭＭ-BS42411 | / | 440-460V,60Hz | Red | 11H |
