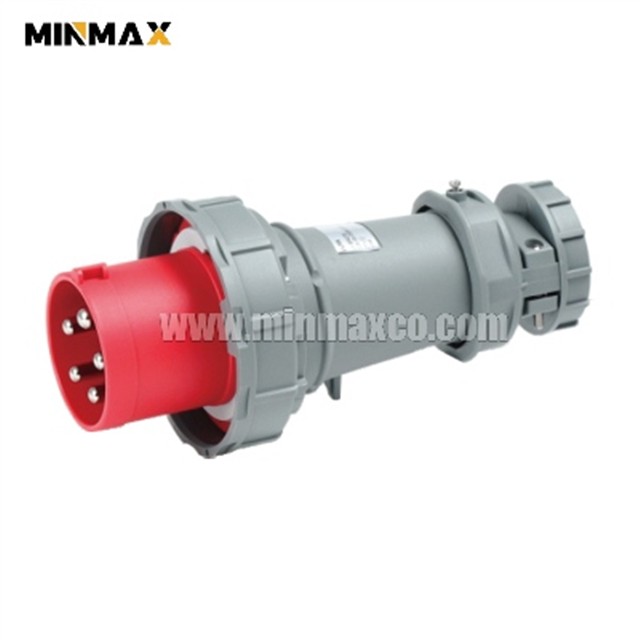

Overview
An industrial plug is a rugged device that connects industrial equipment to power sources. It’s built to withstand harsh conditions, with features like secure locking, high protection ratings (e.g., IP44/IP67), and durability for reliable use in tough industrial settings.
Plugs Features
✔Complies with GB11918-11919-2001 (equivalent to IEC60309-1/2) standards
✔Shell color indicates rated voltage, and dimensions are designed based on current and voltage to prevent mis-insertion
✔Grounding sleeve is longer, elastic band ensures good contact, and features a lock-off device
✔Designed for easy installation for long-term use
✔Engineering plastic housing is drop-resistant and impact-resistant, easy to plug in and out
Product Famaily Details
| Part number | OEM Part Number | Voltage | Color | Male/Female Grounding Contact Position |
| ＭＭ-BP7356 | 3325 | 200/346-240/415V | Red | 6H |
| ＭＭ-BP7359 | / | 120/208-144/250V | Blue | 9H |
| ＭＭ-BP7354 | / | 57/100-75/130V | Yellow | 4H |
| ＭＭ-BP7357 | / | 277/480-288/500V | Black | 7H |
| ＭＭ-BP7352 | / | >50V,301-500Hz | Green | 2H |
| ＭＭ-BP7353 | / | 220/380V,50Hz或250/440V，60Hz | Red | 3H |
| ＭＭ-BP7355 | / | 347/600-400/690V | Black | 5H |
| ＭＭ-BP73510 | / | >50V,100-300Hz | Green | 10H |
| ＭＭ-BP73511 | / | 250/440-265/465V,60Hz | Red | 11H |
