Overview

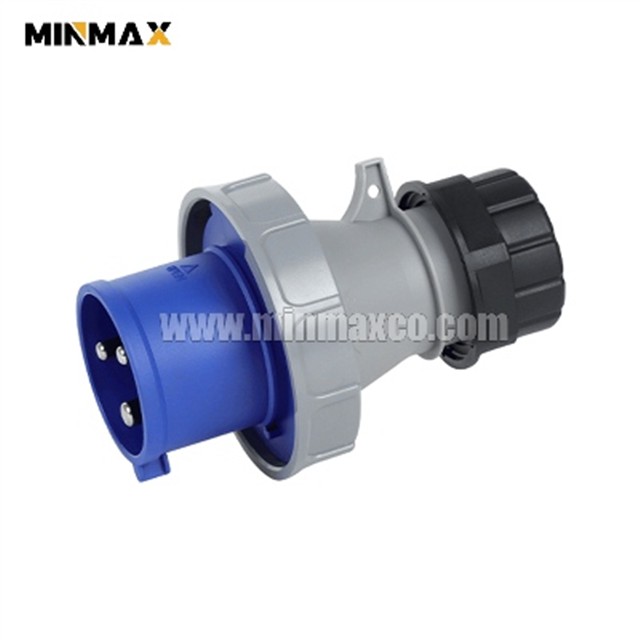

An industrial plug is a rugged device that connects industrial equipment to power sources. It’s built to withstand harsh conditions, with features like secure locking, high protection ratings (e.g., IP44/IP67), and durability for reliable use in tough industrial settings.
Plugs Features
✔Complies with GB11918-11919-2001 (equivalent to IEC60309-1/2) standards
✔Shell color indicates rated voltage, and dimensions are designed based on current and voltage to prevent mis-insertion
✔Grounding sleeve is longer, elastic band ensures good contact, and features a lock-off device
✔Designed for easy installation for long-term use
✔Engineering plastic housing is drop-resistant and impact-resistant, easy to plug in and out
Product Famaily Details
| Part number | OEM Part Number | Voltage | Color | Male/Female Grounding Contact Position |
| ＭＭ-BP7234 | 289 | 100-130V | Yellow | 4H |
| ＭＭ-BP7236 | 290 | 200-250V | Blue | 6H |
| ＭＭ-BP7239 | 291 | 380-415V | Red | 9H |
| ＭＭ-BP7237 | / | 480-500V | Black | 7H |
| ＭＭ-BP7232 | / | >50V,301-500Hz | Green | 2H |
| ＭＭ-BP7233 | / | >50-250VDC | Grey | 3H |
| ＭＭ-BP7238 | / | >250VDC | Grey | 8H |
| ＭＭ-BP72310 | / | >50V,100-300Hz | Green | 10H |
| ＭＭ-BP72312 | / | Due to the power supply from the isolation transformer, 50/60Hz | Grey | 12H |
