Overview

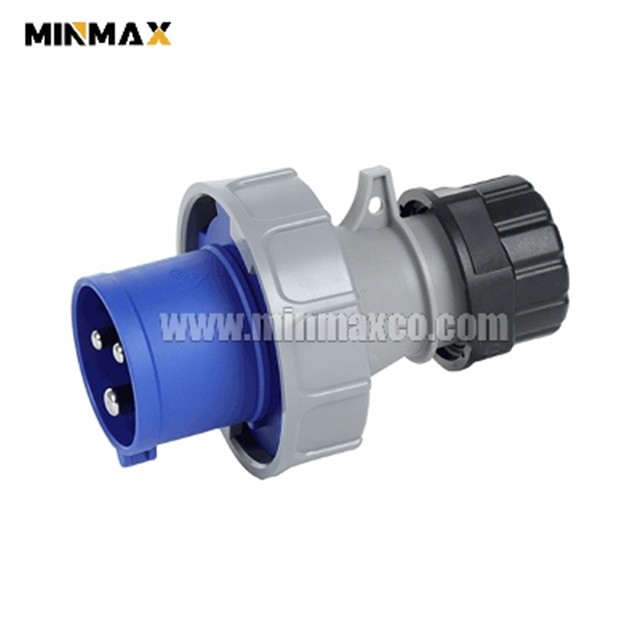

An industrial plug is a rugged device that connects industrial equipment to power sources. It’s built to withstand harsh conditions, with features like secure locking, high protection ratings (e.g., IP44/IP67), and durability for reliable use in tough industrial settings.
Plugs Features
✔Complies with GB11918-11919-2001 (equivalent to IEC60309-1/2) standards
✔Shell color indicates rated voltage, and dimensions are designed based on current and voltage to prevent mis-insertion
✔Grounding sleeve is longer, elastic band ensures good contact, and features a lock-off device
✔Designed for easy installation for long-term use
✔Engineering plastic housing is drop-resistant and impact-resistant, easy to plug in and out
Product Famaily Details
| Part number | OEM Part Number | Voltage | Color | Male/Female Grounding Contact Position |
| ＭＭ-BP7134 | 277 | 100-130V | Yellow | 4H |
| ＭＭ-BP7136 | 278 | 200-250V | Blue | 6H |
| ＭＭ-BP7139 | 279 | 380-415V | Red | 9H |
| ＭＭ-BP7137 | 480-500V | Black | 7H | |
| ＭＭ-BP7132 | >50V,301-500Hz | Green | 2H | |
| ＭＭ-BP7133 | >50-250VDC | Gray | 3H | |
| ＭＭ-BP7138 | >250VDC | Gray | 8H | |
| ＭＭ-BP71310 | >50V,100-300Hz | Green | 10H | |
| ＭＭ-BP71312 | Due to the power supply from the isolation transformer, 50/60Hz | Gray | 12H |
