Overview

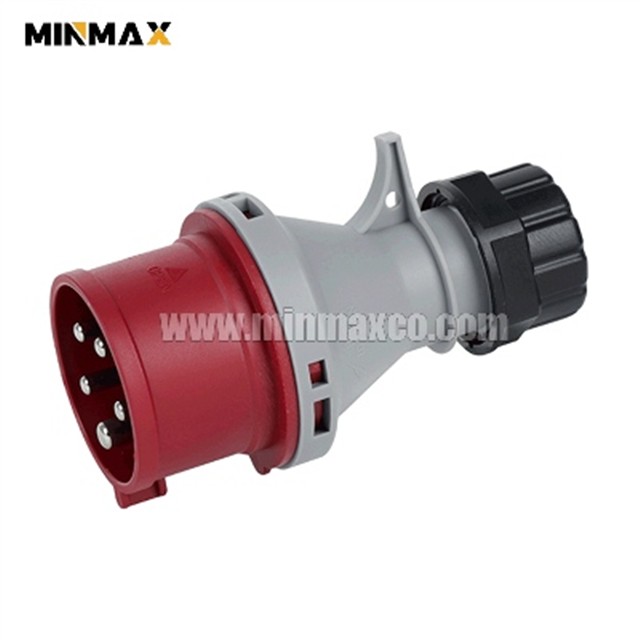

An industrial plug is a rugged device that connects industrial equipment to power sources. It’s built to withstand harsh conditions, with features like secure locking, high protection ratings (e.g., IP44/IP67), and durability for reliable use in tough industrial settings.
Plugs Features
✔Complies with GB11918-11919-2001 (equivalent to IEC60309-1/2) standards
✔Shell color indicates rated voltage, and dimensions are designed based on current and voltage to prevent mis-insertion
✔Grounding sleeve is longer, elastic band ensures good contact, and features a lock-off device
✔Designed for easy installation for long-term use
✔Engineering plastic housing is drop-resistant and impact-resistant, easy to plug in and out
Product Famaily Details
| Part number | OEM Part Number | Voltage | Color | Male/Female Grounding Contact Position |
| MM-BP4156 | 3 | 200/346-240/415V | Red | 6H |
| MM-BP4159 | 257 | 120/208-144/250V | Blue | 9H |
| MM-BP4154 | 256 | 57/100-75/130V | Yellow | 4H |
| MM-BP4157 | 2014 | 277/480-288/500V | Black | 7H |
| MM-BP4152 | 2243 | ＞50V,301-500Hz | Green | 2H |
| MM-BP4153 | / | 220/380V，50Hz或250/4400V，60Hz | Red | 3H |
| MM-BP4155 | / | 347/600-400/690V | Black | 5H |
| MM-BP41510 | 2189 | ＞50V,100-300Hz | Green | 10H |
| MM-BP41511 | / | 250/440-265/465V，60Hz | Red | 11H |
