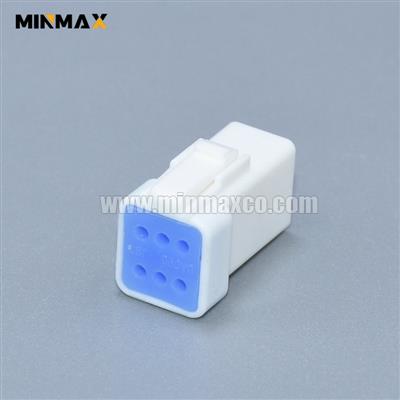

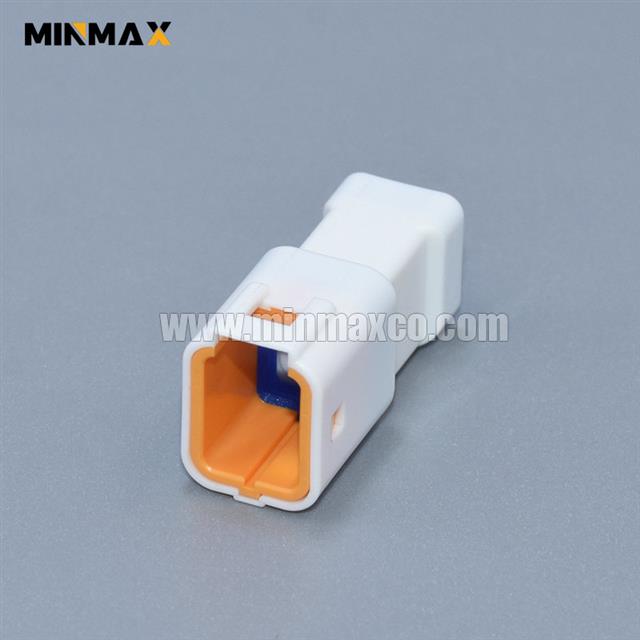

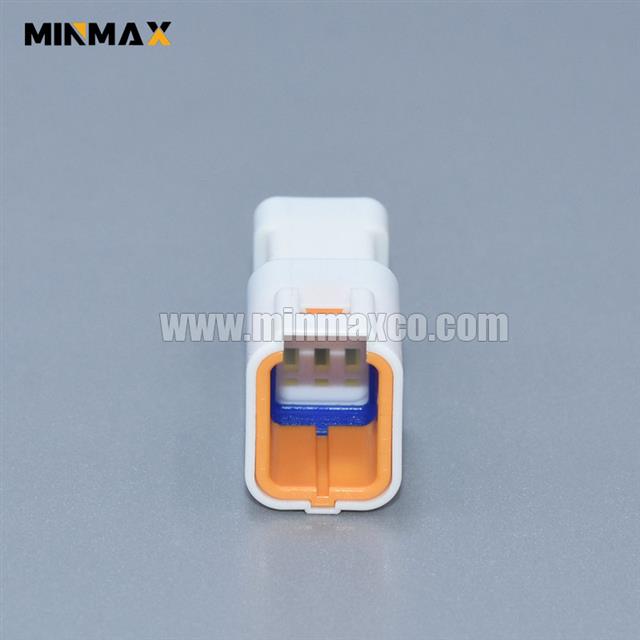

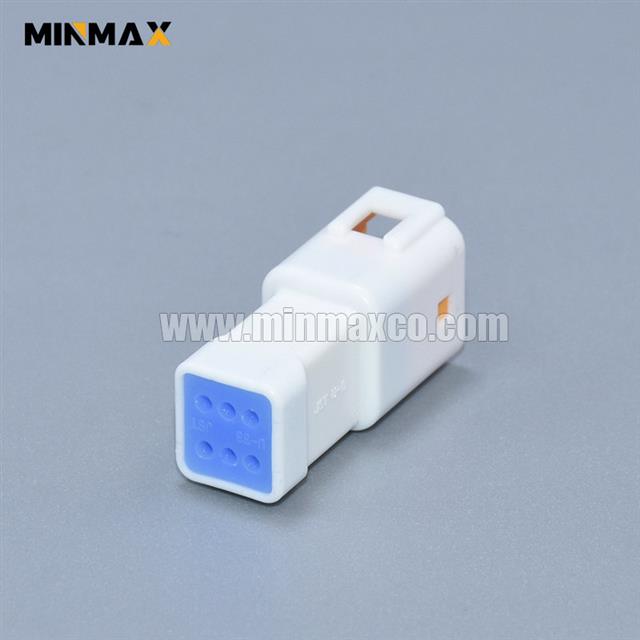

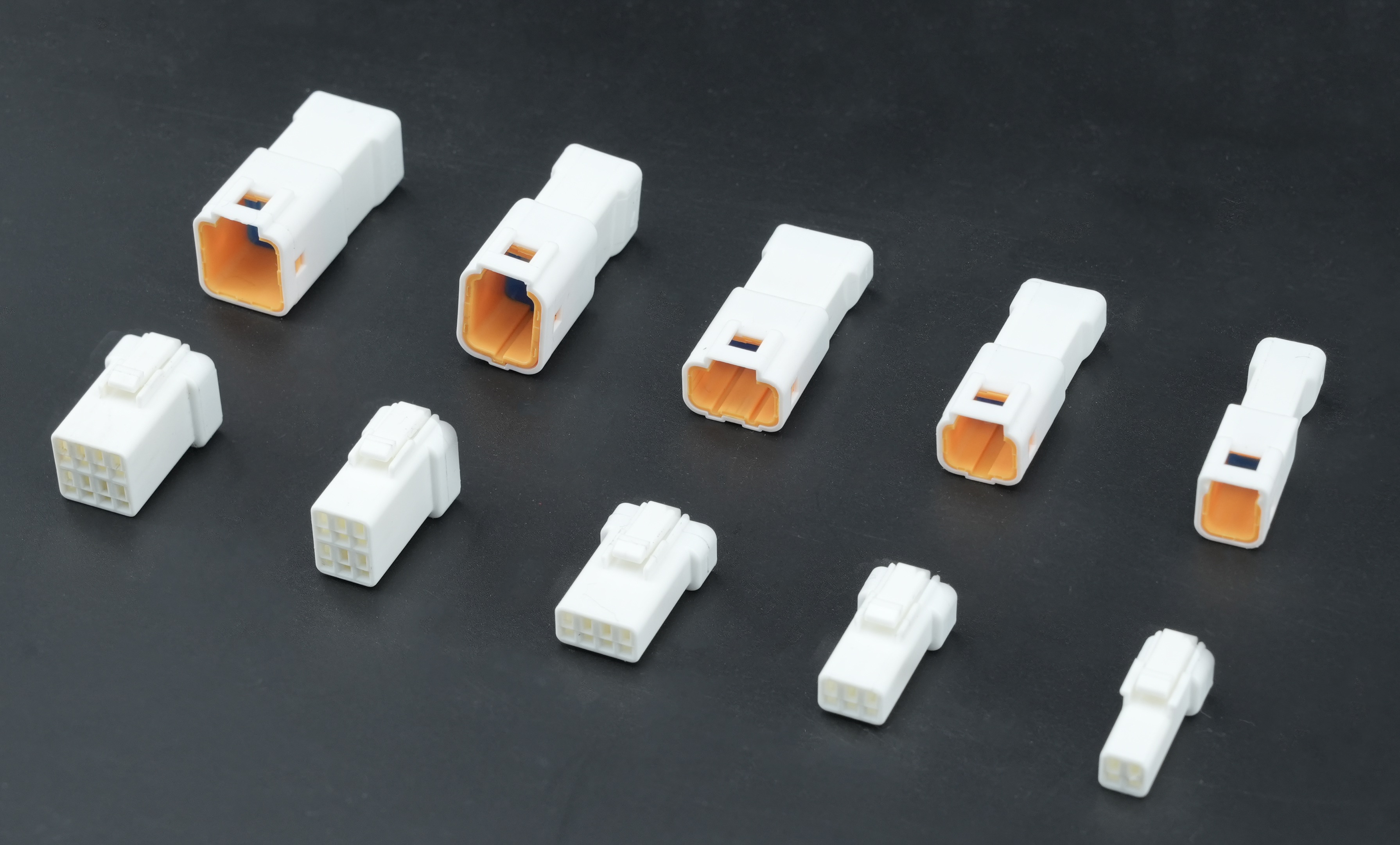

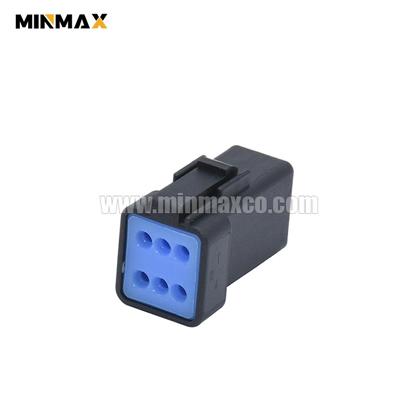

JWPF CONNECTOR 2.0mm pitch Disconnectable Crimp style Wire-to-wire connectors waterproof type

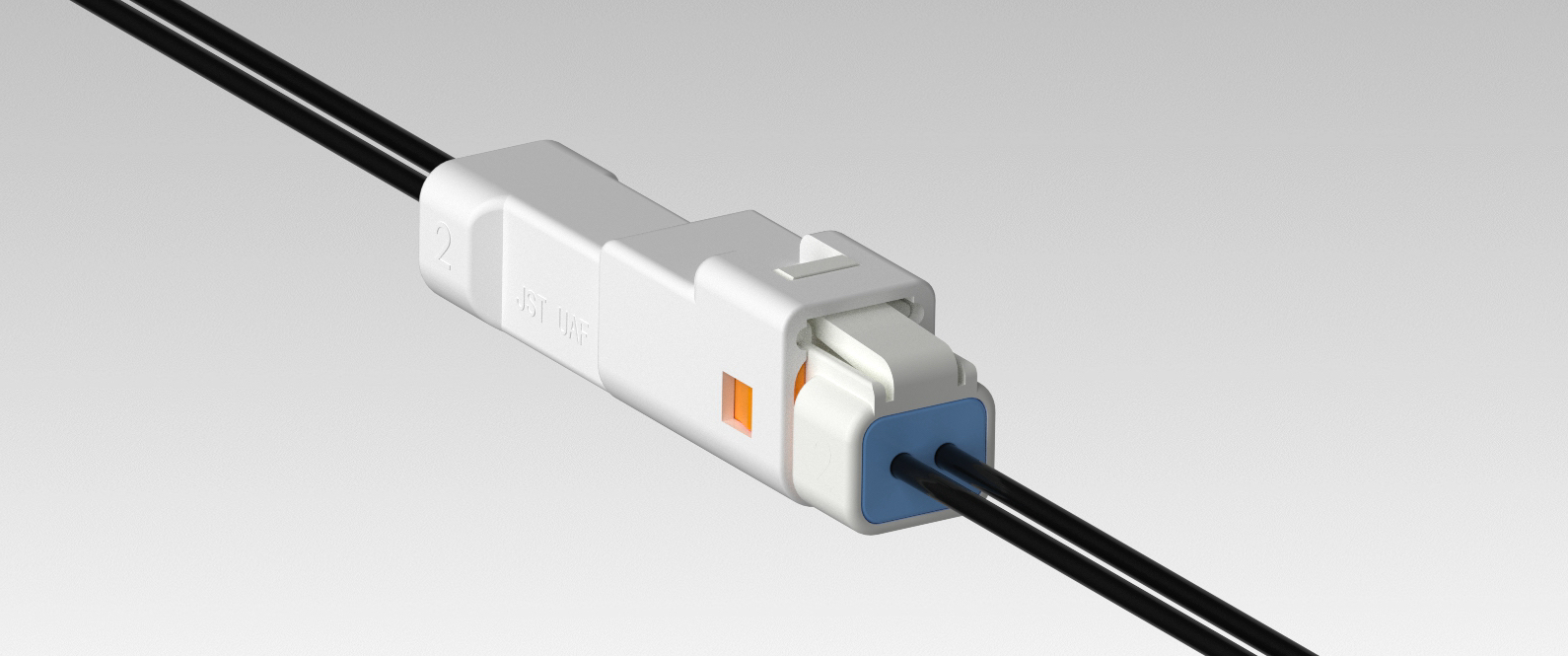

Compact waterproof connector, using 025 contacts and a single piece solid wire seal.
*Superior contact performance is provided by the double-leaf construction,consisting of a main and assist leaf spring.
*Housing lances *Inter-housing lock
Features
• Current rating: 3 A AC, DC (AWG #22)
• Voltage rating: 100 V AC, DC
• Temperature range: -55˚C to +85˚C
(including temperature rise in applying electrical current)
• Contact resistance: Initial value/ 10 mΩ max.After environmental tests/ 15 mΩ max.
• Insulation resistance: 1,000 MΩ min.
• Withstanding voltage: 1,000 VAC/minute
• Applicable wire: AWG #26 to #22 (0.13 to 0.33 mm2)
Insulation O.D./ 1.4 to 1.7 mm
• Waterproof grade: Grade 7 ingress protection of JIS C 0920
(IPX7 of IEC 60529 )
Application
Our Workshop Overview
EDM Mirror Processing EDM Parts Slow-feeding wire cut machine
How to instructions
Step 1 Crimp the terminal and do the pull-out test to make sure the crimpings are completed

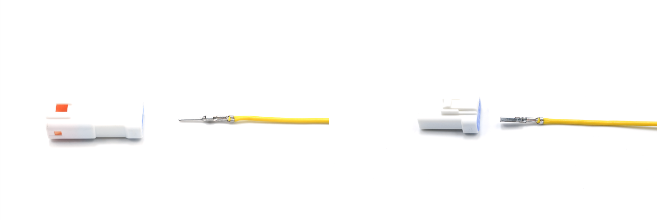

step 2 Crimping terminal and matched connector

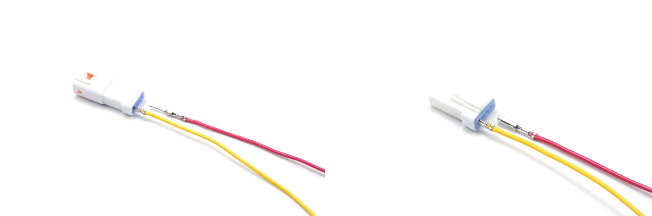

Step 3 Insert the terminal to the connectors

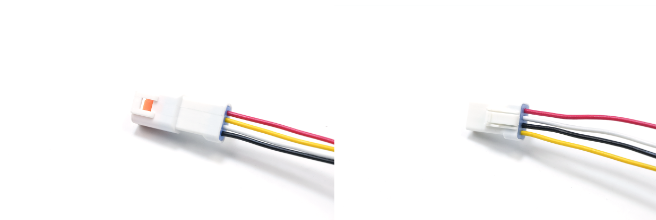

Step 4 finished the connecting.

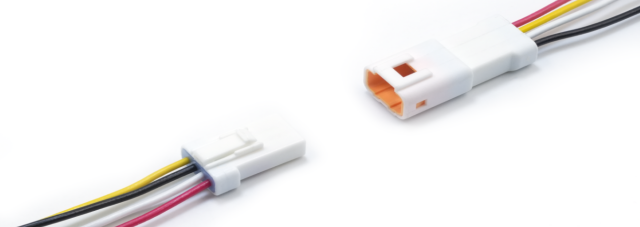

Step 5 Insert the male connector to the female connector
