Ampseal 1.5 Connector Series
Overview
TE created the AMP SUPERSEAL 1.5 series connector family to address the growing needs for reliability and waterproofing. These connectors surpass the IP 67 requirements set by IEC 60529 and DIN 40050-9 standards. They are applicable in automotive, agricultural, and industrial machinery sectors. Moreover, the AMP SUPERSEAL 1.5 series connector system is also suitable for sensor applications.
Features

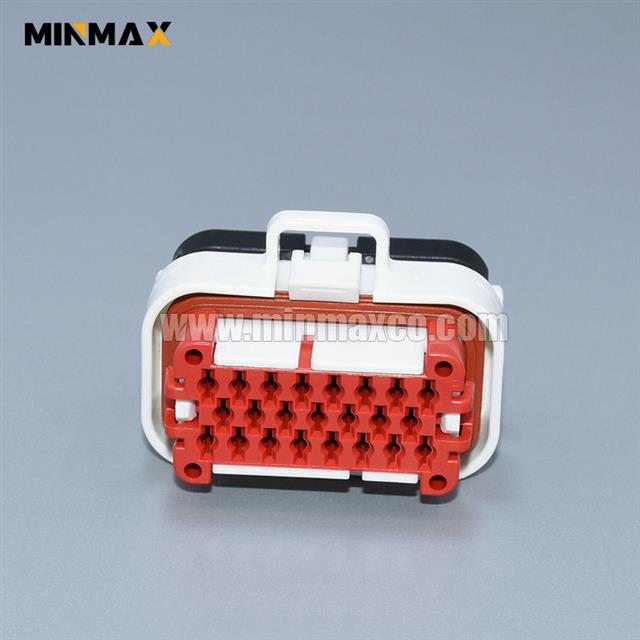

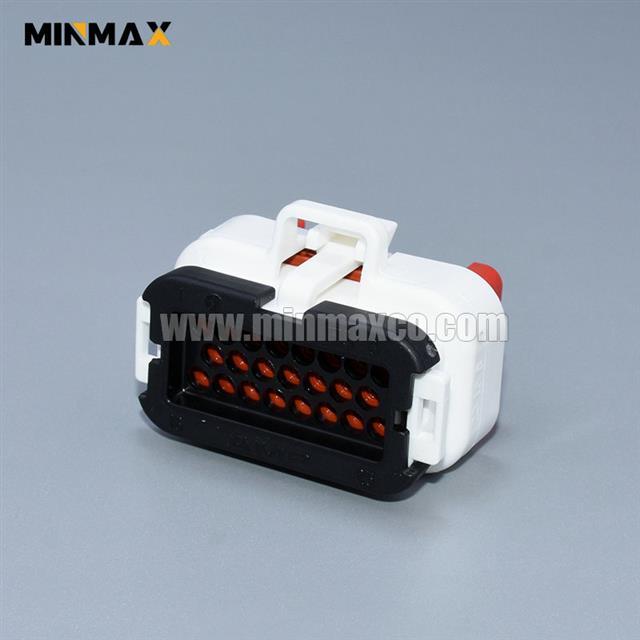

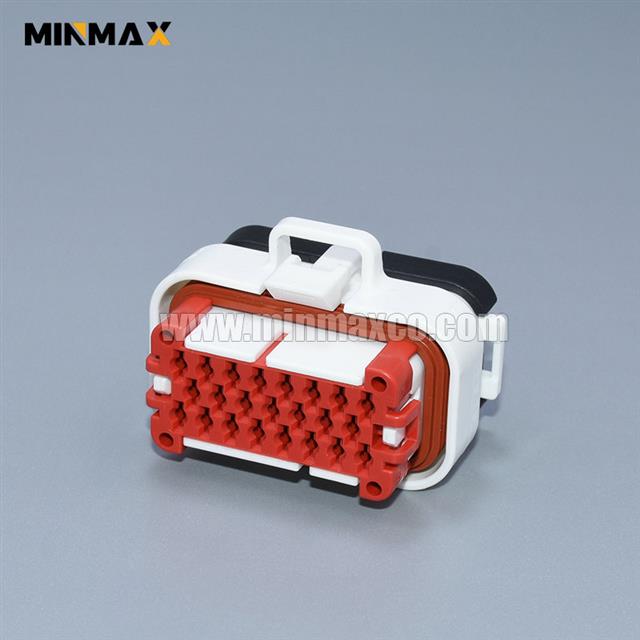

•AMPSEAL receptacle housings are environmentally sealed and available in 8, 14, 23, and 35 cavity arrangements. They accept size 1.3 mm contacts (up to 17 amps gold, up to 8 amps tin) and feature an integrated latch for mating.
•Number of Positions : 23, 14, 35, 8
•Connector & Housing Type : Housing for Female Terminals, Plug
•Mating Pin Diameter (mm): 1.3
•Mating Pin Diameter (in): .051, .05
•Connector System : Wire-to-Device, Wire-to-Panel, Wire-to-Board
•Centerline (Pitch) (mm): 4
•Centerline (Pitch) (in): .16, .157
