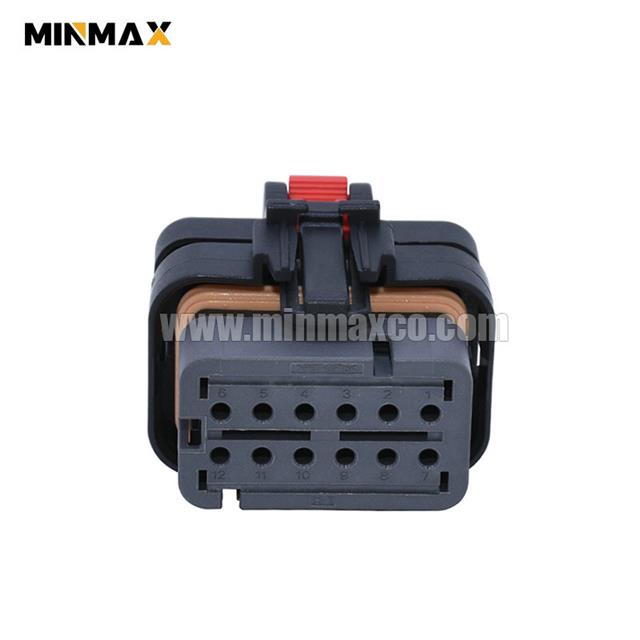

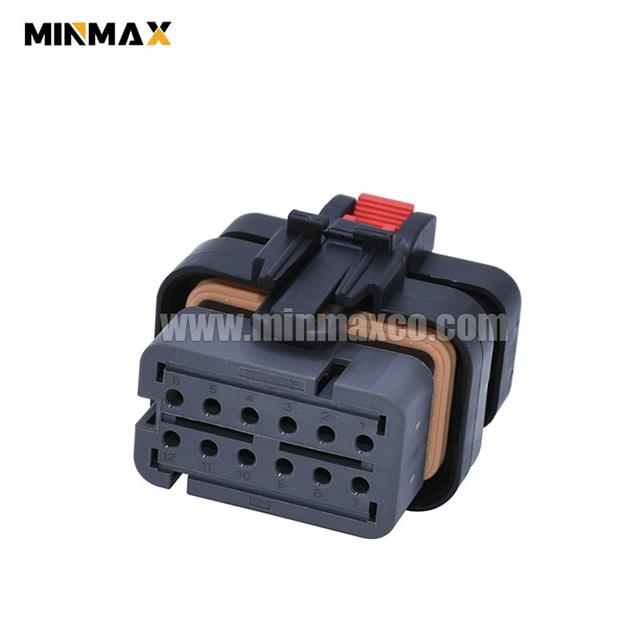

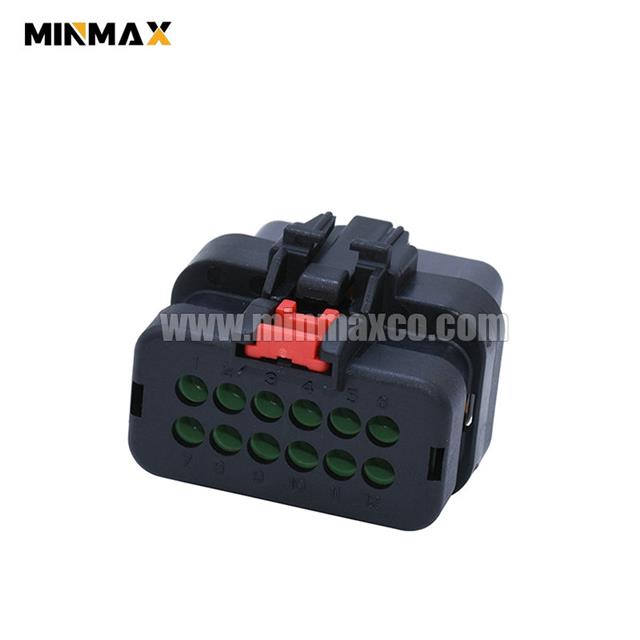

| OEM Part Number | 776437-2 |
|---|---|
| OEM Series | AMPSEAL 16 |
| MinMax Part Number | 1121002861 |
| MinMax Family | MCS019 |
| Connection Type | Wire to Wire |
| Number of Positions | 012 |
| Number of Rows | 2 |
| Hybrid | No |
| Contact Tab Size (mm) | 1.5mm |
| Male/Female | Female |
| Sealable | Yes |
| Body Color | Black |
| Housing Material | PBT-GF20-V0 |
| Nominal Voltage Architecture (V) | 12,14 |
| Operating Temperature Range | -40℃~120℃ |
| Certification | ISO9001, RoHS, REACH, TS16949 |

OEM Part Number:776538-1
Product Series:MCS019
